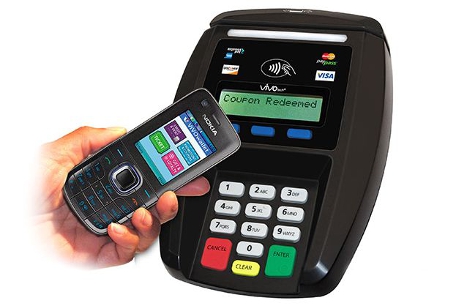

Vivo8100

ID TECH

Kotrade is the Canadian OEM representative for ID Tech payment solutions and POS devices. We provide engineering and logistic support for companies rolling out payment and transaction solutions.


Click here to visit the ID Tech website

Kotrade
MiniMag™, MagStripe Reader ( IDMB series ) Specifications: View PDF
Kotrade Kotrade Kotrade

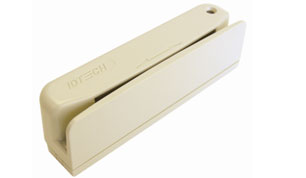

IDTech Kotrade EasyMag™, MagStripe Reader ( IDEA series )

The EasyMag is an intelligent, programmable MagStripe reader. EasyMag provides a wide range of functionality and value in a convenient package size. The entire unit is just 90mm long, about the length of a credit card. It reads up to three tracks of information with a single swipe in either direction. It has a beeper and three-color LED indicator to signal a successful read. The reader is programmable so that the data format and intelligent interface output can be programmed & configured to match application and communication requirements. Programming is easy using ID TECH's Magswipe PC software.

Features:
  • Longer footprint & offset slot
  • Reads up to 3 tracks of information
  • Bi-directional swipe reading
  • Superior reading of high jitter, scratched, and worn MagStripe cards
  • Reliable for over 1,000,000 card swipes
  • Threaded inserts for mounting
  • Reads ISO7811, AAMVA, & most other card data formats
  • Magswipe PC software makes configuration changes easy
  • JPOS & OPOS support for all interfaces is provided
General Information:
  • Size: 5.14 x 1.25 x 1.60 inches (L X W X H)
  • Color: beige and black
  • Swipe speeds from 3 to 60 IPS
  • Interfaces: Keyboard wedge, RS232, USB/Keyboard, USB/CDC, & USB/HID
  • Fully supports USB 2.0
Kotrade
EasyMag™, MagStripe Reader ( IDEA series ) Specifications: View PDF
Kotrade Kotrade Kotrade
IDTech Kotrade MiniMagII™, MagStripe Readers (IDMB Series)

The MiniMag II is an intelligent, programmable MagStripe reader providing a wide range of functionality and value in a convenient package size. The entire unit is just 90 mm long, about the length of a credit card. It reads up to three tracks of information with a single swipe in either direction. It has a beeper and three-color LED indicator to signal a successful read. The reader is programmable so that the data format and intelligent interface output can be programmed & configured to match application and communication requirements. Programming is easy using ID TECH's Magswipe PC software.

Features:
  • Small footprint to fit in tight places
  • Reads up to 3 tracks of information
  • Bi-directional swipe reading
  • Superior reading of high jitter, scratched, and worn cards
  • Reliable for over 1,000,000 card swipes
  • Threaded inserts for mounting
  • Reads ISO7811, AAMVA, & most other card data formats
  • Magswipe PC software makes configuration changes easy
  • JPOS & OPOS support for all interfaces is provided
  • Two-year warranty
General Information:
  • Size: 3.54 x 1.34 x 1.10 inches (L X W X H)
  • Color: beige or black
  • Swipe speeds from 3 to 60 inches per second
  • Interfaces: Keyboard, RS232, USB/Keyboard, USB/CDC, USB/HID and RS232 Port-Powered
  • Fully supports USB 2.0
Kotrade
MiniMagII™, MagStripe Readers (IDMB Series) Specifications: View PDF
Kotrade Kotrade Kotrade

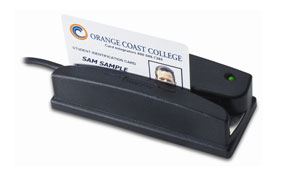

IDTech Kotrade Omni™, Bar Code & MagStripe Reader (WCR32xx series)

The Omni reader is originally designed for the demanding Access Control and Time & Attendance markets. Its die cast metal base, stainless steel wear plate, and impact-resistant housing make Omni ideal for the growing market of self-service and un-attended applications. The Omni reads up to three tracks of magnetic information with a single swipe in either direction. Omni reads most bar code symbologies; both visible or infrared bar code data and/or MagStripe data, both in a single swipe. It has a beeper and three-color LED indicator to signal a successful read. The reader is programmable so that the data format and intelligent interface output can be programmed & configured to match application communication requirements.

Features:
  • Reads both magnetic stipe and barcode media
  • Reliable for over 1,000,000 card swipes
  • Superior reading of high jitter, scratched, and worn MagStripe cards
  • Metal base can be securely mounted with cable exits from side, end, or bottom
  • Weatherproof, sealed or extended temperature versions are available
  • Dual sided MagStripe head versions option
  • Red or infrared bar code reader option
General Information:
  • Size: 5.00 x 2.05 x 1.38 inches (L X W X H)
  • Color: black or beige
  • Swipe speeds from 3 to 60 IPS
  • Interfaces: Keyboard wedge, RS232, USB/Keyboard, USB/RS232, decoded Clock & Data (TTL), & Wiegand Interface
Kotrade
Omni™, Bar Code & MagStripe Reader (WCR32xx series) Specifications: View PDF
Kotrade Kotrade Kotrade

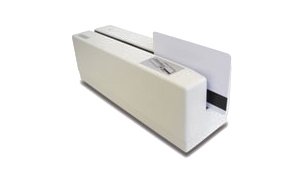

IDTech Kotrade EzWriter™ Card Reader & Writer ( IDWA series )

EzWriter encodes and reads ISO, AAMVA, User Custom, and Raw-Data card formats. It writes (encodes data), reads the data, and then verifies the encoding for up to three tracks in a single card swipe. EzWriter writes/reads both High-coercivity and Low-coercivity cards. EzWriter comes with Workshop™, a Windows software application that makes the reading and writing process quick, easy, and verifiable. Workshop is a PC application that operates in Windows XP or 2000. The operation and design are unique. The die cast housing and the deep card slot with low head force design ensures smooth and easy card swipes. The card motion tachometer has the highest resolution in the industry. These mechanical features are not available in other products; all of them provide stability, reliability, and the accuracy required for ISO/IEC 7811 standards in the card writing process.

Features:
  • Meets all ISO/IEC 7811 standards for card data encoding
  • Reads and writes magnetic stripe media including cards, tickets, badges and passbooks
  • Hi or Low coercivity is easily configured by clicking a single Workshop software button
  • Writes any track combinations of 210 and/or 75 bpi data density
  • Can write characters at variable bit lengths
  • Operating life exceeds 1,000,000 card swipes
  • Die cast housing for stability & operating life
  • True 420 clocks per inch tachometer
  • Workshop software is easy; it guides the user through set-up of standard and custom writing, & reading processes
  • LED provides operational status
General Information:
  • Size: 8.0 x 2.5 x 2.6 inches (L X W X H)
  • Color: Beige
  • Interfaces: RS232
Kotrade
EzWriter™, Card Reader & Writer ( IDWA series ) Specifications: View PDF

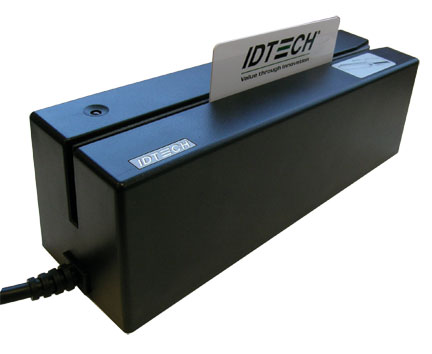

IDTech Kotrade EconoWriter™ - Low Coercivity Only (IDWA Series)

EconoWrtiter encodes and reads, ISO, AAMVA, User Custom, and Raw-Data card formats. It writes (encodes data), reads the data, and then verifies the encoding for up to three tracks in a single cards swipe. Econowriter writes/reads only low coercivity cards and comes with a utility software called Workshop, a Windows software application that makes the reading and writing process quick, easy, and verifiable. Workshop is a PC application that operates in Windows XP or 2000. The deep card slot with low head force design ensures smooth and easy card swipes. The card motion tachometer has the highest resolution in the industry. These mechanical features are not available in other products; all of them provide stability, reliability, and the accuracy required for ISO/IEC 7811 standards in the card writing process.

Features:
  • Reads and writes MagStripe cards, tickets, badges, and passbooks in a single swipe
  • Reads and writes up to 3 tracks of information and any combination of 210 or 75 bpi densities
  • EconoWriter provides 1 million read and write operations minimum for heads, tachometer & electronics
  • Workshop software is easy to use & guides the user quickly through the reading and writing processes
  • Light weight black plastic housing
  • Operating life exceeds 1 million card swipes
  • LED provides operational status
  • Writes any track combinations of 210 and or 75 bpi data density
General Information:
  • Size: 8.0 x 2.5 x 2.6 inches (L x W x H)
  • Color: Black
  • Read speed of 5 to 55 inches per second
  • Write speed of 5 to 35 inches per second
  • Interfaces: USB and RS232
Kotrade
EconoWriter™ - Low Coercivity Only (IDWA Series) Specifications: View PDF
Kotrade Kotrade Kotrade
IDTech Kotrade AccessMag- Rugged Magstripe Reader (ID-80043 Series)

The AccessMag is a magstripe card reader for access control and unattended applications. It unique mounting design, sleek footprint and reading reliability makes it suitable for many other related applications. Accessmag is front mounted using the mounting base and clamshell housing. The wide reader slot enables easy passing of laminated cards and the head mount sheds water and minimizes seepage into the housing. The reader also supports three LED's which are used for ready, card accept and card reject indications. The high speed circuits decode fast speed card swipes, normal at access control locations.

Features:
  • Designed with Security and Access Control in mind
  • Extra wide card slot lead in for easy card swipe orientation
  • Mounts easily with unique "mount from the front" design
  • Rugged, vandal resistant & UV resistant housing
  • Conformally coated electronics and wide temperature range
  • Reliable & simple electronics & 1,000,000+ operations
  • Three tracks magstripe reading capability
  • Exceptional read operation on real world Magstripe cards
  • Large "funnel" card slot entrance for convenient operation
  • Stainless steel wear plate in card slot for durability and ESD protection
  • Three separate LED for operation status
  • Custom interfaces available upon request
  • One-year warranty from date of invoice
General Information:
  • Size: 5.1 x 1.34 x 1.38 inches (L x W x H)
  • Color: Black
  • Read speed of 5 to 55 inches per second
  • Interfaces: RS422
Kotrade
AccessMag- Rugged Magstripe Reader (ID-80043 Series) Specifications: View PDF
Kotrade Kotrade Kotrade

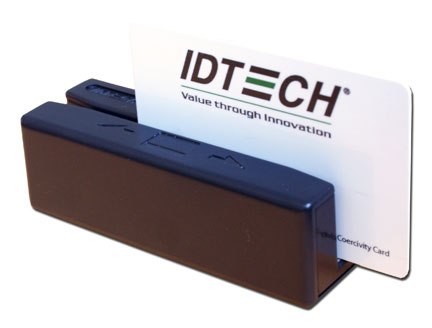

IDTech Kotrade SecureMag Encrypted MagStripe Reader (IDRE Series)

SecureMag delivers superior reading performance while encrypting sensitive data that complies with PCI-DSS requirements. The SecureMag supports TDES and AES data encryption using DUKPT key management.  Each SecureMag card reader is assigned a unique serial number for tracking purposes. Encrypted data output with confirmation data in clear text form is programmable up to the first six digits and the last four digits of the account number. For increased data protection, SecureMag has several operational security levels allowing the user to select the security profile needed for the application.

Features:
  • Reader can function as a standard reader, or configured to an encrypted reader
  • Each device includes a unique serial number
  • Powered through USB port, no external power supply required
  • Bi-directional card reading
  • Clear identification of successful card reads with a beeper and tricolored LED indicators
  • Supports TDES & AES encryption (TDES is standard)
  • DUKPT key management
General Information:
  • -Size: 3.94 x 1.38 inches (L x W)
  • Color: Black
  • Interfaces: USB Keyboard or USB HID
Kotrade
SecureMag Encrypted MagStripe Reader (IDRE Series) Specifications: View PDF
Kotrade Kotrade Kotrade

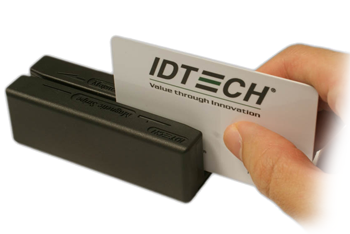

IDTech Kotrade MiniMag Duo (IDMB 35XXXX)

Two magnetic heads provides the most convenience to the user and ensures the data is captured on every swipe. The MiniMag Duo delivers exceptional performance in a compact 90mm long solution.

Features:
  • Dual-head design enhances usability and adds flexibility
  • USB HID or USB Keyboard interface
  • Reads up to 3 tracks of information, bi-directionally
  • Compact size allows use in many applications
  • User-friendly configuration software utility
  • Signifies successful reads with a beeper and LED indicator
  • Reliable for a mnimum of 1 million cycles
  • Two-year warranty
  • Programmable for easy integration with existing environments
General Information:
  • Size: 3.54 x 1.34 inches (L x W)
  • Color: Black, or White
  • Interfaces: USB Keyboard, or USB/HID
Kotrade
MiniMag Duo (IDMB 35XXXX) Specifications: View PDF
Kotrade Kotrade Kotrade Kotrade Kotrade

OEM Swipe Readers:

IDTech Kotrade Omni™ Rail, OEM MagStripe & Bar Code Reader (WCR32XX Series)

The Omni rail is one of a kind due to its hybrid reading capabilities. It contains both barcode and magnetic stripe decoding abilities. Omni is available with either infrared or visible red options for bar code reading. The Omni reader is easy to mount and perfect for POS, self-service, or access control applications. Omni reads one, two, or three MagStripe tracks & provides decoded Clock & Data outputs. It is rugged and durable for heavy use while still maintaining superior reliability. Warranted for a minimum of 1,000,000 media passes, the Omni rail reads barcodes or magnetic stripes bi-directionally.

Features:
  • Single unit reads both barcode and magnetic stripes
  • Reads 1, 2, or 3 tracks of magnetic information
  • Swipe speed of 3 to 60 inches per second
  • Superior reading of high jitter, scratched, and worn MagStripe cards
  • Operating life exceeds 1,000,000 card swipes
  • Visible or Infrared barcode
  • Rugged ABS plastic with stainless steel wear plate
  • Bi-directional read capability
  • One year warranty
General Information:
  • Size: 3.90 x 1.06 x 0.83 inches (L x W x H)
  • Interface: Decoded Clock & Data (TTL), USB, RS232, Keyboard
Kotrade
Omni™ Rail, OEM MagStripe & Bar Code Reader (WCR32XX Series) Specifications: View PDF
Kotrade
Kotrade
Kotrade

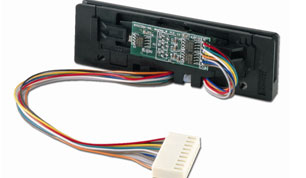

IDTech Kotrade Slimline™ Rail, OEM MagStripe Reader (IDT33X3 Series)

The Slimline magnetic stripe reader rail is just a quarter of an inch wide. This narrow reader is perfect for any width limited MagStripe OEM application. It comes with Data and Clock signals for each decoded MagStripe track. Two countersunk holes are provided for easy mounting. Designed for heavy duty and versatile applications, the rugged Slimline rail has a stainless steel wear surface to ensure long life and accurate data registration. It also reliably reads up to three tracks of information, bi-directionally. There are multiple cable pin-out options.

Features:
  • Narrow width and small footprint
  • Reads 1, 2, or 3 tracks of magnetic information
  • Swipe speed of 3 to 60 inches per second
  • Operating life exceeds 1,000,000 card swipes
  • Superior reading of high jitter, scratched, and worn MagStripe cards
  • Rugged with a durable stainless steel wear plate
  • Bi-directional read capability
  • One year warranty
  • Easy to mount; multiple cable pin-outs options
General Information:
  • Size: 3.54 x 0.63 x 1.10 inches (L x W x H)
  • Interface: Decoded Clock & Data (TTL), USB, RS232, Keyboard
Kotrade
Slimline™ Rail, OEM MagStripe Reader (IDT33X3 Series) Specifications: View PDF
Kotrade
Kotrade
Kotrade
IDTech Kotrade 90mm Rail, OEM Magstripe Reader (IDT33X4 Series)

The 90mm rail is a MagStripe reader for OEM applications. It reads up to three tracks of data with a single swipe in either direction. Its 90mm length slot and mounting options make it a perfect fit for reading magnetic stripes in any OEM application. It has reliable MagStripe reading on damaged or bowed cards. The rugged ABS plastic chassis with molded-in stainless steel card wear plate exceeds 1,000,000 card swipes. The reader is available in custom configurations including intelligent interfaces, and custom cable/connector options.

Features:
  • Small size and multiple standard footprints
  • Reads 1, 2, or 3 tracks of magnetic data
  • Swipe speed of 3 to 60 inches per second
  • Operating life exceeds 1,000,000 card swipes
  • Superior reading of high jitter, scratched, and worn MagStripe cards
  • The chassis utilizes a stainless steel wear plate
  • Bi-directional read capability
  • JIS (dual head) compatible 90mm readers are available
  • One year warranty
  • Data and Clock output standard
General Information:
  • Size 3.54 x 0.94 x 0.94 inches (L x W x H)
  • Interfaces: TTL, RS232, USB & Keyboard Wedge
  • Custom interfaces and I/O cables available
Kotrade
90mm Rail, OEM Magstripe Reader (IDT33X4 Series) Specifications: View PDF
Kotrade
Kotrade
Kotrade


INSERT READERS

Full Insert Readers:


IDTech Kotrade Spectrum™ III MagStripe Only, Insert Reader (SPT3-3xx Series)

The Spectrum III Mag-Only Insert Reader (MOIR) is a vandal resistant, industry standard design, which decodes up to three tracks of magnetic data. Available in a standard or flush mount bezels and numerous communication interfaces, the Spectrum III MOIR is ideal for heavy usage, self-service applications requiring a rugged insert reader. The Spectrum III MOIR configuration software allows easy programming so that the data format and intelligent interface output can be programmed & configured to match application and communication requirements.

Features:
  • Reads 1, 2, or 3 tracks of magnetic information
  • Swipe speed of 3 to 50 IPS
  • Operating life exceeds 1,000,000 card cycles
  • Superior reading of high jitter, scratched, and worn MagStripe cards
  • RS232, Keyboard wedge, USB Keyboard, USB-CDC communication interfaces
  • Card present & seated sensors, debris gate, & many bezels options
  • Extended Temperature options
  • One year warranty
  • JPOS & OPOS drivers are available
General Information:
  • Size: 4.64 x 3.97 x 0.96 inches (L x W x H)
  • Interfaces: RS232, Keyboard wedge, USB Keyboard, USB-CDC
Kotrade
Spectrum™ III MagStripe Only, Insert Reader (SPT3-3xx Series) Specifications: View PDF
Kotrade
Kotrade
Kotrade

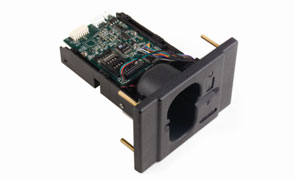

IDTech Kotrade Spectrum™ III, Hybrid MagStripe & Smart Card Insert Reader (SPT3-8xx Series)

The Spectrum III Hybrid Insert Reader is a vandal resistant, 1,000,000 card cycle reader that decodes up to three tracks of magnetic data as well as reads and writes to smart cards. This industry standard footprint insert reader is the same rugged & vandal resistant design used throughout the world in self-service, payphone, and banking applications for more than a decade. The Spectrum is available with multiple bezel, chassis mounting options, and numerous communication interfaces. The Spectrum III Hybrid reader is approved to Terminal Level 1, EMV2000 specification. Spectrum III chassis, molded from an engineering plastic and with landing style smart card contacts, provides reliability and durability in any self-service application.

Features:
  • Reads and writes to memory and CPU (T=0 & T=1) smart cards
  • Decodes up to three tracks of magnetic data on ISO 7811 cards at speeds of 3 to 50 IPS
  • Superior reading of high jitter, scratched, and worn MagStripe cards
  • Operating life exceeds 1,000,000 card cycles
  • Terminal Level 1, EMV 2000 approved
  • Landing style smart card contacts
  • Durable engineering plastic molded chassis
  • Options: Latch, Debris Gate, up to 5 SAM sockets, Bezels, Interfaces, mounting and operating temperature options
  • One year warranty
General Information:
  • Size: 4.64 x 3.97 x 0.96 inches (L x W x H)
  • Interfaces: RS232, USB CDC, USB PC/SC, RS232 PC/SC, USB RS232
Kotrade
Spectrum™ III, Hybrid MagStripe & Smart Card Insert Reader (SPT3-8xx Series) Specifications: View PDF
Kotrade
Kotrade
Kotrade

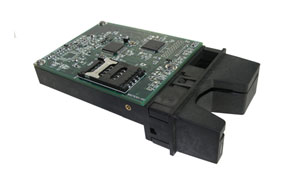

IDTech Kotrade Spectrum™ III, Compact Hybrid MagStripe & Smart Card Reader (IDSA Series)

Our newest manual insert reader, the Compact Spectrum III, is one of the few readers in the industry that couples smart card and magnetic stripe reading capabilities into a compact solution. Compact Spectrum III reads up to three tracks of MagStripe data. The smart card contacts are the landing type. With a minimum of 1,000,000 life cycles for both magnetic and smart card reading capabilities, the Compact Spectrum III is an ideal choice for demanding OEM applications.

Features:
  • Combines smart card and magnetic stripe reading capabilities into a compact solution
  • Superior reading of high jitter, scratched, and worn MagStripe cards
  • Same command and response protocol as the full size Spectrum III
  • Reads and writes to memory and CPU (T=0 & T=1) smart cards
  • Reads microprocessor smart cards
  • Decodes up to three tracks of magnetic data @ speeds of 3 to 50 IPS
  • Operating life exceeds 1,000,000 card cycles
  • Durable chassis molded from engineering plastic
  • SAM, Bezel, Interface and Extended Temperature options
  • One year warranty
  • OPOS & JPOS driver available
General Information:
  • Size: 4.2 x 2.5 x 0.87 inches (L x W x H)
  • Interfaces: RS232, USB CDC, USB PC/SC, RS232 PC/SC
Kotrade
Spectrum™ III, Compact Hybrid MagStripe & Smart Card Reader (IDSA Series) Specifications: View PDF
Kotrade
Kotrade
Kotrade
IDTech Kotrade Spectrum III Compact Mag Only Insert Reader (MOIR)

ID TECH introduces a Mag Stripe Insert Reader solution in a compact size. It is available in a wide selection of intelligent interface options and supports a user friendly configuration utility to allow for programming and data formatting. The Spectrum III Compact MOIR provides excellent read performance on real world card through the MagChip ASIC technology. Gauranteed for over 1,000,000 card cycles, the reader is the ideal choice for unattended self-service applications with limited space.

Features:
  • Small reader profile and footprint
  • 1,000,000 MagStripe card cycles minimum
  • Excellent read performance even on warped or bowed cards
  • Reads tracks 2, 1&2, 1&2&3
  • Wide swipe speed range - 3 to 80 IPS reliably
  • Vandal Resistant with anti-jam chassis debris opening
  • Intelligent interfaces for all applications
  • Decoded MagStripe data formatting, parsing & pre/post data characters
  • Options: Conformal coating, and card sensor switches
General Information:
  • Size: 4.2 x 2.5 x .87 inches (L x W x H)
  • Interfaces:RS232, USB-HID, USB-Keyboard, USB-CDC, and Keyboard Wedge
Kotrade
Spectrum III Compact Mag Only Insert Reader (MOIR) Specifications: View PDF
Kotrade
Kotrade


Partial Insert Readers:

IDTech Kotrade Spectrum™ Partial Insert Hybrid MagStripe & Smart Card Reader (IDT-8xx7 & IDT-8xx8 Series)

This Hybrid Partial Insert Reader is designed to read on insertion and decode approximately 2.5 inches of magnetically encoded data on one to three tracks, and/or read and write to Smart Cards. Its built in ESD protection makes it ideal for applications in Dry/Air Conditioned environments. The Spectrum Hybrid reader is available in Magnetics Only, Smart Card, or Hybrid versions.

Features:
  • Reads magnetic stripe and/or reads & writes to memory and CPU (T=0 & T=1) smart cards
  • Reads up to 3 tracks of magnetic data
  • Superior reading of high jitter, scratched, and worn MagStripe cards
  • Reads magnetic cards on insertion/withdrawal and decodes approximately 2.5 inches of data
  • Operating life exceeds 1,000,000 card cycles
  • Landing style smart card contacts with card seated switch
  • Optimized for ESD protection
  • Lighted Bezel Options
  • Large & small opening bezels
General Information:
  • Size: 3.09 x 3.0 x 0.45 inches (L x W x H)
  • Interfaces: RS232, USB RS232, PC/SC
Kotrade
Spectrum™ Partial Insert Hybrid MagStripe & Smart Card Reader (IDT-8xx7 & IDT-8xx8 Series) Specifications: View PDF
Kotrade
Kotrade
Kotrade

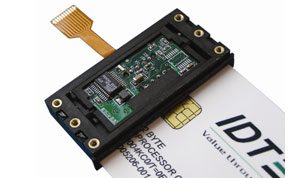

IDTech Kotrade MiniSmart™, Partial Insert Smart Card Reader (MIN Series)

The MiniSmart has a unique size, which distinguishes it from all other smart card readers in the industry. With its small envelope, it can be integrated into almost any application. The MiniSmart features GemCore technology from Gemplus and is available with RS232 PCSC & UART interfaces. This intelligent smart card reader is EMV Level 1 2000 Approved. It also comes in a version for direct contacts connection. Both products have landing style contacts, with a reliability of 1,000,000 card cycles. MiniSmart is an extremely rugged, fully integrated smart card reader offering optional bezels and gates for harsh environment applications.

Features:
  • Operates with memory & CPU (T=0, T=1) smart cards
  • EMV 2000 Level 1 approved
  • Features GemCore technology from Gemplus
  • Protocol communication layer support and drivers
  • Landing style smart card contact & card seated switch
  • Ruggedized reader design, molded from an engineering plastic
  • Operating life exceeds 1,000,000 card cycles
  • Bezels, gate and extended temperature options available
General Information:
  • Size: 1.06 x 2.28 x 0.34 inches (L x W x H)
  • Interfaces: RS232, RS232 PC/SC, RS232(UART), USB & Direct connect options
Kotrade
MiniSmart™, Partial Insert Smart Card Reader (MIN Series) Specifications: View PDF
Kotrade
Kotrade
Kotrade


OEM CONTACTLESS READERS

Stand Alone Contactless Readers:


IDTech Kotrade Xpress™ Contactless Reader

Using ID TECH Xpress readers is easy, customers hold their card or key fob near the reader landing plane to complete a purchase transaction. It supports financial association requirements for contactless payments. The unique design allows for counter top use with stand; separated from the stand, it can be attached to any vertical surface with Velcro. Xpress reader has four LED's and beeper to signal successful completion of the transaction.

Features:
  • Small footprint saves counter space
  • Rubber feet or Velcro mounting
  • Adjustable reader height and angles
  • Complies with ISO/IEC 14443 A & B
  • PayPass, ExpressPay and Visa Contactless compatible
  • Reading range up to 10 cm
  • Front overlay allows customization
  • 4 LED's and Beeper
General Information:
  • Color: cool gray
  • Interfaces: RS232 or USB/CDC
  • Reading distance: ISO 14443 compatible
  • USB 2.0 full speed support
Kotrade
Xpress™ Contactless Reader Specifications: View PDF

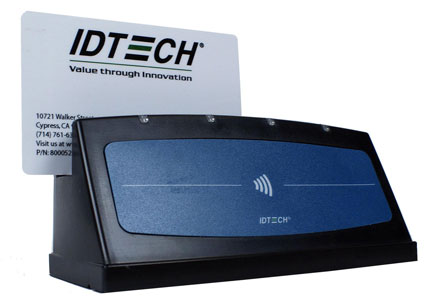

IDTech Kotrade OmniFare

The OmniFare is made to withstand daily use and wear. The rugged design provides protection from vandalism and allows weather-resistant operation. Its housing is constructed of a sturdy base, an impact-resistant cover, and a stainless steel card slot wear plate. Options include weatherproof, sealed, or extended temperature versions for more harsh and wet environments.

Features:
  • Contactless and MagStripe in one card reader
  • USB HID or RS232 interfaces
  • Designed for vandal resistance, rugged use, and weather resistant operation
  • Reliable MagStripe reader for a minimum of 1,000,000 passes
  • Contactless Functionality reads cards within 4cm of landing area
  • Signifies successful reads with a beeper and LED indicator
  • Great drop-in replacement for existing installations
General Information:
  • -One-year, parts and labor warranty
  • Dimensions: 5 inches (127mm) x 2.05 inches
  • (52mm) x 2.05 inches (52mm)
  • Access-control solution
  • Loyalty program
Kotrade
OmniFare Specifications: View PDF
Kotrade
Kotrade
Kotrade

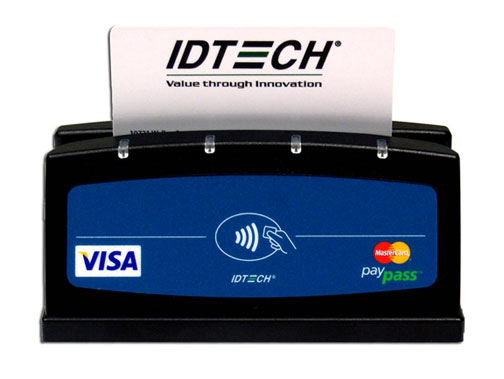

IDTech Kotrade OmniXpress

The OmniXpress is based on ID TECH's proven Omni platform. It comes with all the rugged features and options of our widely installed Magstripe-only reader, but opens the door to the contactless payment market for you and your customers.

Features:
  • Contactless and MagStripe in one card reader
  • Drop-in solution
  • Supports USB-HID interface (Other interfaces available on request)
  • MasterCard PayPass and Visa PayWave certified
  • Beeper and LED indicators provide clear card-read status feeback
  • MagStripe rail offers ID TECH's superior card-read technology
  • MagStripe certified to one million swipes
  • Outdoor Solution - Ruggedized version available
  • Six-foot cable
General Information:
  • Vertical and counter-top mounting options
  • One-year warranty, parts and labor
  • Footprint: 127mm x 52mm x 35mm (5"x2.5"x1.38")
  • Operating Temp: -25 - 70C/-13 to 149F
  • +5VC +/-10%, 65mA Max, combined magstripe and contactless
  • Bi-directional MagSwipe direction
Kotrade
OmniXpress Specifications: View PDF
Kotrade
Kotrade
Kotrade
Kotrade
Kotrade


BARCODE SCANNERS

Handheld Scanners:


IDTech Kotrade VersaScan™ LR, Bar Code Scanner ( IDBA 4XXXX Series)

ID TECH VersaScan Long Range CCD Scanner is specially designed to deliver high-end performance with the scanning range from contact to 15 inches depending on the barcode density. The scanner utilizes advanced scanning & decoding technology. The scanned data is formatted to meet the user needs. This rugged scanner is lightweight and designed to fit comfortably in the hand for extended periods of use. The cable is detachable for easy replacement or change of interfaces.

Features:
  • Ergonomic handling design & light weight
  • Long range scanning up to 15 inches
  • Rugged design for industrial environment
  • Supports most barcode symbologies
  • Trouble-free interchangeable communication cable between KB, RS232, and USB interface
  • Data editing & formatting features
  • Configuration cloning capability
  • 230 scans per second
  • Continuous and flash scanning mode
General Information:
  • Size: 6.3 x 2.6 x 3.7 inches (L x W x D)
  • Color: Two-tone, Black & Gray
  • Interfaces: RS232, USB, or Keyboard wedge
  • Field Width & Depth: 5.3 & 1.2 - 2.8 inches
  • Scans per second: 230
Kotrade
VersaScan™ LR, Bar Code Scanner ( IDBA 4XXXX Series) Specifications: View PDF
Kotrade
Kotrade
IDTech Kotrade EconoScan™, Bar Code Scanner ( IDT 44XX Series)

The EconoScan CCD Scanner is specially designed to deliver high-end performance at the lowest possible price. The scanner has an ergonomic design to fit comfortably in the operator's hand for increased productivity and superior decoding of all popular symbologies.

Features:
  • Ergonomic design for superior handling
  • Scanning range up to 4.72 inches
  • Rugged design for industrial environment
  • Supports most barcode symbologies
  • Trouble-free interchangeable communication cable between KB, RS232, and USB interface
  • Data formatting features
  • Configuration cloning capability
  • Continuous and flash scanning mode
  • Grey or Black housing option available
General Information:
  • Size: 7.75 x 3.5 x 2.0 inches (L x W x D)
  • Color: Gray or Black
  • Interfaces: RS232, USB, or Keyboard wedge
  • Field Width & Depth: 4.7 & 0 - 2.0 inches
  • Scans per second: 150
Kotrade
EconoScan™, Bar Code Scanner ( IDT 44XX Series) Specifications: View PDF
Kotrade
Kotrade
IDTech Kotrade EconoWand™, Bar Code Scanner ( IDT 12XX Series)

EconoWand is a low cost handheld wand that enables quick contact scanning of virtually any length. The hand-held wand is comfortable to hold and use. The scanner decodes all popular bar code symbologies and outputs the data in user programmable formats, including postamble, preamble, and code ID's. A beep tone indicates successful bar code reads. There are no moving parts, and the EconoWand comes in rugged stainless steel housing.

Features:
  • Ergonomic design for comfortable handling
  • Contact Scanning
  • Rugged design for industrial environment
  • Supports most barcode symbologies
  • Trouble-free interchangeable communication cable between interfaces
  • Data formatting features
  • Stainless Steel housing option available
General Information:
  • Size: 5.5 x 1.2 inches (L x W)
  • Color: Two-tone, Green & Gray
  • Interfaces: RS232, USB, or Keyboard wedge
Kotrade
EconoWand™, Bar Code Scanner (IDT 12XX Series) Specifications: View PDF
Kotrade

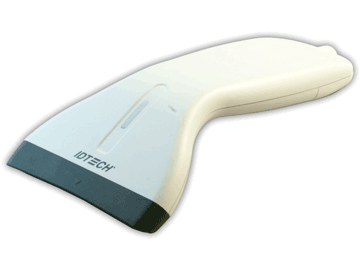

IDTech Kotrade EconoScan II, Short Range CCD Scanner (IDBA-42X4SR)

ID TECH is proud to introduce the EconoScan II, our next generation short range CCD scanner that is specially designed to deliver high-end performance at the lowest possible price. The scanner utilizes exceptional decoding technology, making it the best in its class in terms of performance and value. The EconoScan II enables quick contact scanning of bar codes up to 4 inches in length. With an impressive scan rate of 200 scans per second, low quality or damaged bar codes as well as small or high-density bar codes can be read with exceptional speed and accuracy. This ergonomic hand-held scanner is ideal to be used in a wide variety of markets, including retail, logistics and light industry applications.

Features:
  • Super slim body design
  • The longest reading range in its class
  • High scan rate of 200 scans/sec
  • Supports most linear barcode symbologies
  • Data formatting features
  • Continuous and flash scanning mode
General Information:
  • Size: 6.10 in. x 3.07 in. x 0.63 in.
  • Color: Beige
  • Interfaces: PS/2, RS232, USB Keyboard
  • Field Width: 5.59 in. (for 10.5 mil code 39)
  • Range: 0 in. to 4 in.
  • Scans Per Second: 200 scans per second
Kotrade
EconoScan II, Short Range CCD Scanner (IDBA-42X4SR) Specifications: View PDF
Kotrade
Kotrade
Kotrade

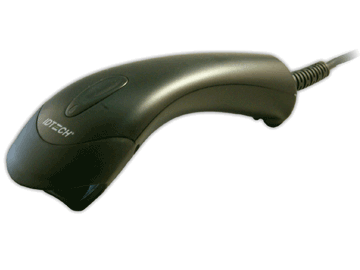

IDTech Kotrade ValueScan II, Mid Range CCD Scanner (IDBA-42X4MRB Series)

The ID TECH ValueScan II provides the utmost value in terms of price and performance.  The ValueScan II features an auto-sensing mode, allowing the scanner to operate while resting in its stand. When the scanner detects a barcode is present, it will automatically activate, allowing users the freedom of scanning barcodes without a scanner in their hands. The ValueScan II contains no moving parts, yet it is exceptionally lightweight and designed to fit comfortably in the hand for extended periods of usage. This ergonomic hand-held scanner is ideal to be used in a wide variety of markets, including retail, logistics and light industry applications.

Features:
  • Lightweight, ergonomic design
  • General purpose reader - a single device covering the broadest range of application
  • Durable - no moving parts to wear out
  • 100 scans per second
  • Scan range from contact to 6 inches
  • Auto-sensing mode for energy saving and hands-free operation
  • Readable under sunlight
General Information:
  • -Size: 6.93 in. x 2.64 in. x 1.57 in.
  • Color: Black
  • Interfaces: PS/2, RS232, USB Keyboard
  • Field Width: 1.97 inches
  • Range: 0 in. to 6 in.
  • Scans Per Second: 100 frames per second
Kotrade
ValueScan II, Mid Range CCD Scanner (IDBA-42X4MRB Series) Specifications: View PDF
Kotrade
Kotrade
Kotrade

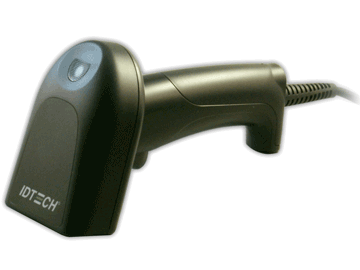

IDTech Kotrade VersaScan II, Long Range CCD Scanner (IDBB-42X1LRB Series)

ID TECH’s second generation long range CCD barcode scanner, the VersaScan II, boasts a scan rate of 450 scans per second, topping its class. With a competitive scanning range of up to 13.8 inches, the VersaScan II allows for excellent reading at an optimal distance. The VersaScan II features an auto-sensing mode, allowing the scanner to operate while resting in its stand. When the scanner detects a barcode is present, it will automatically activate, allowing users the freedom of scanning barcodes without a scanner in their hands. In addition to the freedom provided by the superior transmission range, the VersaScan II has the ability to read all global 1D barcode symbologies as well as PDF417. With such flexibility, ID TECH's VersaScan II is an excellent scanner for multiple applications.

Features:
  • Ergonomic design for superior handling
  • Long range scanning up to 13.8 inches
  • Auto-sensing mode
  • Rugged design for industrial environment
  • Supports most standard 1D barcode symbologies plus PDF417
  • Data editing features
  • Configuration cloning capability
  • 450 scans per second
  • Trouble-free interchangeable communication cable between PS/2, RS232, and USB Keyboard interfaces
General Information:
  • Size: 6.29 in. x 2.72 in. x 3.46 in.
  • Color: Black
  • Interfaces: PS/2, RS232, USB Keyboard
  • Field Width: 7.87 in.
  • Range: 1.5 in. to 13.8 in.
  • Scans Per Second: 450 frames per second
Kotrade
VersaScan II, Long Range CCD Scanner (IDBB-42X1LRB Series) Specifications: View PDF
Kotrade
Kotrade
Kotrade

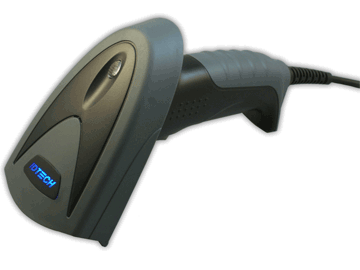

IDTech Kotrade 2DScan, 2D Barcode Imager (IDBA-66X1LRB series)

The ID TECH 2DScan is a well-designed handheld scanner for 1D and 2D barcode scanning for retail, logistics, and office automation.  With the increasing popularity of 2D barcodes, the 2DScan ensures readability of most global symbologies.  With the high-performance CMOS scan engine, the 2DScan can be used to scan barcodes off of LCD displays such as cell phones and monitors, as well as surfaces in bright sunlight. The imaging technology also allows the 2DScan to capture the barcode omni-directionally regardless of its orientation, which improves productivity and efficiency in a wide range of applications.

Features:
  • -Low power consumption
  • Supports 1D, 2D, and composite codes
  • Will read codes on mobile phone LCD screens
  • Omni-directional reading
  • Auto-sensing mode
General Information:
  • Size: 6.46 in. x 9.96 in. x 2.87 in.
  • Color: Black with gray detail
  • Interfaces: PS/2, RS232, USB Keyboard
  • Field Width: 5.12 in. (for 10 mil code 39)
  • Range: 1.77 in. to 17.72 in.
  • Scans Per Second: 60 frames per second
Kotrade
2DScan, 2D Barcode Imager (IDBA-66X1LRB series) Specifications: View PDF
Kotrade
Kotrade
Kotrade

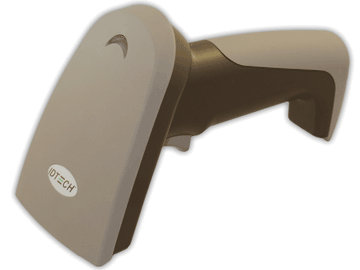

IDTech Kotrade BluScan, Wireless CCD Scanner (IDBA-42X3LRB series)

The ID TECH BluScan is an ultra long range wireless CCD scanner. The BluScan not only provides superior performance with a rapid scan rate of 450 scans second, but also allows an exceptional scan range of up to 40 inches. Utilizing unique wireless-communication technology, the BluScan operates with a 100-meter data transmission range that tops most competitors in its class. Accompanied by a long-lasting Li-ion battery pack and IP42 sealing level design, BluScan offers the freedom of mobility of barcode scanning and outstanding durability in a wide range of applications including business offices for shipping/receiving, supermarkets, warehouses and manufacturing. The BluScan has the ability to read all global 1D barcode symbologies as well as PDF417.

Features:
  • Lightweight, ergonomic design
  • Excellent scanning performance with 450 scans per second
  • Scans up to 40 inches away depending on barcode size and density
  • Operates with a 100
  • meter data transmission range from the base
  • Readable under sun light
  • Supports GS1databar (RSS), CS (Composite Symbology), and PDF417
  • Seals to resist airborne particulate contaminants (IP 42)
General Information:
  • Size: 6.46 in. x 3.07 in. x 2.20 in.
  • Color: Black with gray detail
  • Interfaces: PS/2, RS232, USB Keyboard -Field Width: 6.30 in.
  • Range: 0 in. to 40 in.
  • Scans Per Second: 450 frames per second
Kotrade
BluScan, Wireless CCD Scanner (IDBA-42X3LRB series) Specifications: View PDF
Kotrade
Kotrade
Kotrade


Slot Readers:

IDTech Kotrade Omni™, Bar Code & MagStripe Reader (WCR32xx series)

The Omni reader is originally designed for the demanding Access Control and Time & Attendance markets. Its die cast metal base, stainless steel wear plate, and impact-resistant housing make Omni ideal for the growing market of self-service and un-attended applications. The Omni reads up to three tracks of magnetic information with a single swipe in either direction. Omni reads most bar code symbologies; both visible or infrared bar code data and/or MagStripe data, both in a single swipe. It has a beeper and three-color LED indicator to signal a successful read. The reader is programmable so that the data format and intelligent interface output can be programmed & configured to match application communication requirements.

Features:
  • Reads both magnetic and barcode media
  • Reliable for over 1,000,000 card swipes
  • Superior reading of high jitter, scratched, and worn MagStripe cards
  • Metal base can be securely mounted with cable exits from side, end, or bottom
  • Weatherproof, sealed or extended temperature versions are available
  • Dual sided MagStripe head versions option
  • Red or infrared bar code reader option
  • JPOS & OPOS drivers are available
General Information:
  • Size: 5.00 x 2.05 x 1.38 inches (L X W X H)
  • Color: black or beige
  • Swipe speeds from 3 to 60 IPS
  • Interfaces: Keyboard wedge, RS232, USB/Keyboard, USB/RS232, decoded Clock & Data (TTL), & Wiegand Interface.
Kotrade
Omni™, Bar Code & MagStripe Reader (WCR32xx series) Specifications: View PDF
Kotrade
Kotrade


POS PERIPHERALS

POS Keyboards:

IDTech Kotrade Versakey™ 230 (Compact) POS Keyboard w/ MagStripe Reader (IDKA-33xxxx series)

The Versakey 230's 14" width is ideal for applications where space is at a premium. It is designed to meet all of the reuirements found in retail applications such as hospitality, airline, postal services, loyalty, security, car rental etc. The Versakey 230 contains an integrated MagStripe reader which reads up to three tracks of card data. The MagStripe reader provides for bi-directional card swiping for ease of operation, form either side of the magnetic head. The Versakey 230 has both USB-KB and PS/2 KB communication interfaces.

Features:
  • Compact form factor & 103/104 key layout
  • Full-function POS ready keyboard with fully configurable card reader
  • Standard Microsoft keyboard layout with LED indicators
  • Plug-n-play with windows operating systems
  • Windows Vista compatible
  • USB-KB & PS/2 Keyboard interface available
  • 20 million key strokes & 1 million card swipes durability
  • 2 or 3 tracks magnetic stripe reader, full data editing capability
  • Multiple language keyboard layout available with minimum order quantity
  • 3 year warranty
General Information:
  • Size: 14.13 x 7.00 x 1.57 inches (L x W x H)
  • Color: Black
  • Interfaces: PS/2 (Keyboard) or USB Keyboard
Kotrade
Versakey™ 230 (Compact) POS Keyboard w/ MagStripe Reader (IDKA-33xxxx series) Specifications: View PDF
Kotrade
Kotrade

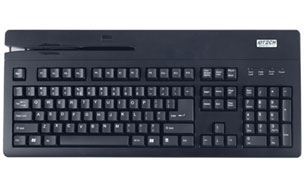

IDTech Kotrade VersaKey™ POS Keyboard w/MagStripe Reader (IDKA-23xxxx Series)

ID TECH, the leader in MagStripe Technology, is proud to announce our newest full-sized POS keyboard - VersaKey. The VersaKey features an enhanced MS Windows layout keyboard with a full featured MagStripe card reader. The keyboard layout provides separated function keys, control keys, curser keys, and a full numerical input keypad. There are also many country specific key layouts available. It comes in USB and PS2 Keyboard interfaces.

Features:
  • Full-Function Keyboard & Card Reader
  • 3 or 2 Tracks Magnetic Strip Reader, full data editing capability
  • USB-Keyboard or PS/2 KB interface
  • Operating life exceeds 1,000,000 card swipes
  • 20,000,000 key strokes guaranteed
  • Single cable convenience between the keyboard and PC
  • Full-size standard Microsoft Keyboard layout with LED indicators
  • Plug-n-Play with Windows operation systems
  • Extra two-port USB hub for the USB version
  • Brazil, Japanese, Korean, and UK, keyboard layouts available
General Information:
  • Size: 18.5 x 8.0 x 1.7 inches (L x W x H)
  • Color: Black
  • Interfaces: PS/2 (keyboard) or USB Keyboard
Kotrade
VersaKey™ POS Keyboard w/MagStripe Reader (IDKA-23xxxx Series) Specifications: View PDF
Kotrade


PIN Pads & Signature Capture Pads:

IDTech Kotrade SecurePIN™ 100 Handheld PIN Entry Device (IDPA-5XXXXX Series)

The SecurePIN is PCI certified, which guarantees the highest security protection from fraud and attack. It incorporates tamper-detection sensors to oppose any unauthorized intrusion, as well as a fixed firmware command set that prevents any illegal operation. The SecurePIN is designed to satisfy the significant increase of debit, EBT, and any other PIN-required transactions. The 2-by-12 LCD display with backlit option supports multiple languages that would accommodate a variety of global applications. With the ANSI X9.8 recommended key layout, the SecurePIN key pad placement allows the user to speed up the checkout process and minimize errors.

Features:
  • Compact & ergonomic design for space saving & users' convenience
  • PCI certified to provide the highest security for customer's PIN-based transactions
  • USB or RS232 communication interfaces
  • Employs DES and 3DES encryption with DUKPT Key Management for PIN security
  • 2 x 12 alphanumeric LCD display that supports multiple languages
  • Field changeable backlight and beeper setting
General Information:
  • USB 2.0 and RS232 interface options
  • Low power and 5VDC operation
Kotrade
SecurePIN™ 100 Handheld PIN Entry Device (IDPA-5XXXXX Series) Specifications: View PDF
Kotrade
Kotrade
IDTech Kotrade SmartPIN™, PIN Entry Device (IDPA-7XXXXX Series)

SmartPIN is a PCI Certified Modular PIN Entry Device. It is designed for outdoor or indoor unattended POS operations where encrypted PIN entry is required. SmartPIN products are used in POS machines for fuel dispensing, kiosks, vending, and other devices accepting credit and debit payments. SmartPIN is available as a PED only or as a PED with integral backlit LCD display and 3 programmable application/function keys.

DES and Triple DES are used for encryption and DUKPT is used for key management. The design is robust, withstands abusive use, and is vandal resistant. The keys and display are waterproof for splashed, spilled and direct liquid spray.

PIN Entry is encrypted and securely transmitted over the RS232 or USB 2.0 communication interface. 16 PIN pa keys are arranged in telephone layout, ADA compliant an have audio output feedback. The backlit LCD display (optional) has 2 lines x 16 characters for information text and visual indication of the PIN entry.

Features:
  • Payment Card Industry (PCI) Certified, Rugged Vandal Resistant
  • Meets ANSI and ISO standards for a PIN Entry Device (PED)
  • Vandal resistant design for outdoor , indoor and unattended applications
  • Supports DES and TDES encryption algorithms for PIN encryption
  • Provides DUKPT Key Management operations
  • 100,000 POH MTBF; PIN Pad life greater than 1,500,000 operations
  • Large, easy to see keys, with positive tactile feel and audio feedback
  • Provides a two lines by 16 character backlit LCD display
  • 100,000 POH MTBF; PIN Pad life greater than 1,500,000 operations
General Information:
  • Communication interface is RS232 or USB 2.0
Kotrade
SmartPIN™, PIN Entry Device (IDPA-7XXXXX Series) Specifications: View PDF
Kotrade
Kotrade
IDTech Kotrade uSign™ 200, Signature Capture Pad (IDUA-01x500 series)

ID TECH's uSign 200 is an electronic signature capture device with bighted graphic LCD and signature panel. uSign provides enhanced compliance with eSignature legislation and increased signature security with superior ergonomic design for ease-of-use and real-time signature quality. The interactive mode allows customers to select and navigate transactions with just the stylus pen. The signature is compressed and provided to a host system for signature and data storage.

uSign is ideal for retail, hospitality, self-service and quick service restaurants...etc. It also comes with a metal mounting plate, which provides the uSign with a mounting option. A removable overlay on the uSign's display covers and protects the signature area, allowing replacement when the signature area becomes worn from stylus use.

Features:
  • Replaceable tethered stylus, non-electronic
  • Resistive touch pad with transparent, replaceable protective overlay
  • Electronic signature capture with buffered signature capability
  • Sampling rate up to 190 dots per second; 1024 dot/inch resolution
  • Real time signature capture with 5:1 compression
  • Raw data output available
  • firmware filters spikes and provides smoothing
  • Grapics display of signature during capture
  • Host controlled graphics display when not in signature process
  • Calibration mode or function
  • Command and response driven operations through and API
  • Demo application runs in Windows 2000 and XP
General Information:
  • USB or RS232 interfaces
  • 14.6 x 13 x 4cm (L x W x H)
  • 200,000 Power on Hours
  • RoHS compliant
Kotrade
uSign™ 200, Signature Capture Pad (IDUA-01x500 series) Specifications: View PDF
Kotrade
Kotrade


COMPONENTS / ACCESSORIES

OEM Heads & Electronics
:

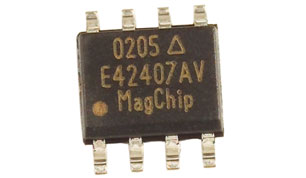

IDTech Kotrade MagChip™, MagStripe Decoding ASIC (IDT 141)

The MagChip is an Application-Specific Integrated Circuit (ASIC) specifically designed for amplifying and decoding MagStripe read head signals. Because MagChip is an Integrated Circuit (IC) designed specifically to perform reading and decoding functions, it is smaller, consumes less power, and costs less than a general-purpose processor chip while delivering superior performance. MagChip decodes the analog output from a magnetic "read" head and produces a digital data-bit stream with clock and "media detect" outputs. It has 100 levels of Automatic Gain Control (AGC), decode speeds of 3 to 75 inches per second, and uses less than 50 micro amps when not reading.

Features:
  • Superior reading of high jitter, scratched, and worn MagStripe cards
  • Low power-sleeps when not reading
  • Less than 1.0mA typical when reading a card
  • Operation form 2.7V to 5.5V
  • True AGC handles signal amplitudes from 1mV to 1V p-p
  • +/- 2000V Electro-Static Discharge (ESD) protection
  • Typical card swipe speeds from 3 to 75+ ips
  • Compatible with a wide range of available read heads
  • Supports bi-directional card swiping and decoding
General Information:
  • Size: 5.0 x 4.0 x 1.75mm (L x W x H)
Kotrade
MagChip™, MagStripe Decoding ASIC (IDT 141) Specifications: View PDF
Kotrade
Kotrade
Kotrade
IDTech Kotrade QuickBar II™, Bar Code Reading ASIC (IDT 1440 Series)

The Quickbar II is a fully featured single-chip solution far smaller (just 12mm square) than traditional decoding chip sets. It is an exceptionally reliable high-speed decoder for all popular bar code symbologies including Code 39, UPC, and Interleaved 2 of 5. Quickbar is capable of decoding speeds up to 100 scans per second. The Quickbar II features a programmable memory that enables rapid upgrades and easy firmware revisions. This low power, high-speed decoding chip is designed for use in handheld scanners, slot readers, fixed mount scanners, decoding boxes, and portable data terminals.

Features:
  • Decodes all popular symbologies
  • Low power, low cost solution
  • Capable of decoding at speeds of 100 scans/second
  • Programmable memory
  • Small size single chip solution
  • Designed for a variety of readers
General Information:
  • Size: 12.25 x 12.25 x 1.20mm (L x W x H)
Kotrade
QuickBar II™, Bar Code Reading ASIC (IDT 1440 Series) Specifications: View PDF
Kotrade
Kotrade
Kotrade

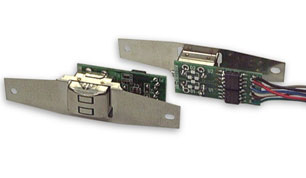

IDTech Kotrade MagChip™ Head, MagStripe Read Head w/ Decoding ASICs (IDT1300 Series)

ID TECH's MagChip ASIC is integrated with a MagStripe read head with a mounting spring assembly. The MagChip Read Head Assembly delivers reading and decoding capabilities in a very small package. The MagChip ASIC, MagStripe data decoding IC, is mounted directly on the read head to decode up to three tracks of data. The head, in turn, is mounted on a spring that provides support, deflection, and gimble for good contact with the magnetic stripe. Signals from the MagChip are CMOS-level Clock & Data outputs of decoded serial data bits.

Features:
  • Low power- sleeps when not reading
  • Less than 1.0mA per track when reading a card
  • Superior reading of high jitter, scratched, and worn MagStripe cards
  • Supports bi-directional card swiping and decoding
  • True AGC handles signal amplitudes from 1mV to 1V p-p
  • +/- 2000V Electro-Static Discharge (ESD) protection
  • Typical card swipe speeds form 3 to 60 IPS
  • Head & spring life exceeds 1,000,000 card swipes
General Information:
  • Operating voltage: 2.7V to 5.5V
Kotrade
MagChip™ Head, MagStripe Read Head w/ Decoding ASICs (IDT1300 Series) Specifications: View PDF
Kotrade
Kotrade
Kotrade

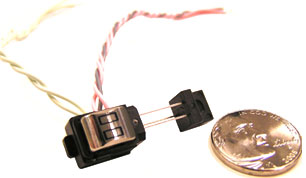

IDTech Kotrade Parallelogram™ MagStripe Read Head (80081202 Series)

The Parallelogram Head Assembly from ID TECH features a distinct design, that ensures good gap to media contact, ideal for OEM MagStripe reading applications. Available in either singles, dual or triple track configurations, the head assembly accurately reads media conforming to ISO 7811 standards. The design ensures the head maintains excellent contact with the card at a proper force. With greater than 1,000,000 cycle head life, the head assembly is a dependable solution for decoding magnetic information.

Features:
  • Exceptional read performance through its unique parallelogram design
  • Small footprint and single mounting hole allow easy implementation
  • Cantilevered head design
  • Operates bi-directionally
  • Waterproof an strain relieved wires
  • Head Life exceeds 1,000,000 swipes
  • Single, dual or triple track options
  • Reads media conforming to ISO 7811 standards
General Information:
  • Track ETW: 0.06 +/-0.004 in
  • Output Voltage: 35mV @210BPI & 7.5IPS
  • Inductance: 110 +/-20% mH
  • DC Resistance: 280 +/-20% Ohms
  • Operating temperature: -40° to 75°C
Kotrade
Kotrade


Mobile Readers:

14 Years of Reliable Global Sourcing

IDTech Kotrade iMag, Mobile MagStripe Reader

The iMag mobile reader is an encrypted magnetic stripe reader for the iPhone 3G, iPhone 3GS, iPhone 4, and iPod Touch. The iMag reads up to 3 tracks of information with a single swipe in either direction, providing superior reading performance for your mobile device. The snug fit design was built for comfort and mobility, allowing you to accept credit card transactions wherever you go. A merchant account is required to accept credit cards. iPhone not included.

Features:
  • Superior MagStripe reader performance
  • Bi-directional card reading
  • reads up to three tracks of card data
  • Mini-USB port enables iPhone to be charged
  • No external power supply required
  • Small form factor for comfort and mobility
  • Snug fit design
  • PCI Compliant

Compatible Hardware:

  • iPhone 4
  • iPhone 3G
  • iPhone 3GS
  • iPod touch 3rd generation
  • Coming Soon: iPod touch 4th generation
General Information:
  • Size: 95mm x 29.8mm x 70.78mm
  • Color: Black
  • Magnetic Stripe Reader: 3 track bi-directional reading capabilities
  • Interfaces: iPhone 3G, iPhone 3GS, iPhone 4, iPod touch
Kotrade
iMag, Mobile MagStripe Reader Specifications: View PDF
Kotrade
Kotrade
IDTech Kotrade UniMag, Mobile MagStripe Reader

The UniMag is an encrypted magnetic stripe reader that works with various mobile devices. The UniMag reads up to 3 tracks of information with a single swipe in either direction, providing superior reading performance for your mobile device. A merchant account is required to accept credit card transactions. Mobile device not included.

Features:
  • Plugs into audio headphone jack – no cables
  • Mechanical design allows easy and reliable card swipe
  • No external power supply required
  • Superior magstripe reader performance
  • Bi-directional card reading
  • Reads up to three tracks of card data
  • Data is encrypted for end-to-end security using TDES, DUKPT

Compatible Hardware:

  • Apple iPad
  • Apple iPhone 3G
  • Apple iPhone 3GS
  • Apple iPhone 4
  • Apple iPod touch 3rd generation
  • Motorola DROID 2
  • Motorola DROID X
  • Motorola Milestone
  • Coming soon: Apple iPod touch 4th generation
  • Coming soon: Blackberry

General Information:

  • Size: 30mm x 11mm x 45m m
  • Color: Black
  • Magnetic Stripe Reader: 3 track bi-directional reading capabilities
  • Interfaces: 3.5 mm stereo audio jack.
